Honesty Precise Professiona
6位数码管显示 | 性价比高,多种数字滤波 |
三点晶体管输出,两点输入 | 可选数字+模拟量输出 |
在线咨询 | 产品图纸 |
参数 | Specifications | 技术指标/Technique |
供电电压 | Power supply | DC10~30V |
信号输入 | Signal input range | 0.4~6mV/V |
激励电压 | Excitation voltage | 5VDC±2%,100mA |
A/D分辨率 | A/D conversion resolution | 24bit (binary) (24位) |
输出端口 通讯协议 |
Interface Protocol |
RS485 and RS232, can add analog output(0~20mA/4~20mA/ -10~10V)(同时带有RS485和RS232,可加模拟量输出) Modbus RTU/FREE(自由协议) |
传输速率 | Transmission speed | 1200/2400/4800/9600/19200/38400/57600/115200 |
驱动能力 | Number of load cells | Up to 6 load cells 350 Ω(6个350欧传感器) |

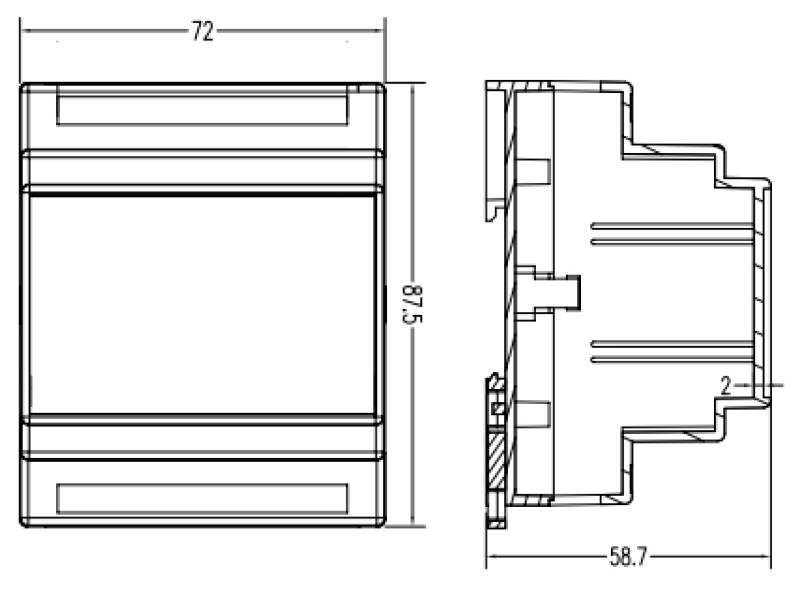

外形尺寸 | Dimensions | 87.5x72x58.7mm |
工作温度 | Temperature operating | -30~60℃ |
A/D转换率 | A/D conversion rate | 10/40/640/1280/S |
显示精度 开关量 |
Minimum indication resolution External I/O signal |
1/10000 3-point transistor output, 24V/1A load capacity, 2 input (3点晶体管输出、24V/1A带载能力,2路输入) |
显示 | Characters displayed | 5 digits or 6 digits(5位或6位红色数码管显示) |
